Brief Description
●   Max rate 1800ml/h
●   Automatic calibration
●   Three operating modes

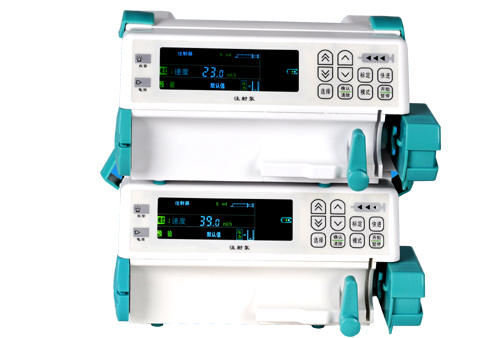

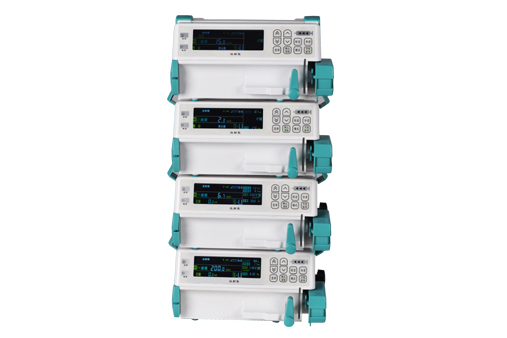

●   Can be stacked up to 8 channels
●   Light weight, user friendly
●   Audible and visible alarms
●   RS232 interface, LCD, night light
●   English or other language display
Main Technical Parameters

Applicable syringes :
5ml,10ml,20ml,30ml,50ml,60ml of any standard
Accuracy :
+/- 2% with correct calibration
Rate mode :
50ml(60ml):0.1ml/h-1800.0ml/h (0.1ml/h step)
20ml(30ml):0.1ml/h-800.0ml/h (0.1ml/h step)
10ml:0.1ml/h-400.0ml/h (0.1ml/h step)
Time Mode :
SOL. VOL:0.1-999.9ml (0.1ml step)
TIME:1-1999min (1min step)
Body Weight Mode :
Volume:0.1-999.9ml(0.1ml step)
DRUG MASS:0.1-999.9mg 0.1mg step)
DOSE:0.01-99.99ug/kg/min(0.01ug/kg/min step)
WEIGHT:0.1-300kg(0.1kg the least step)
Total VolumeRange :
0.1-1999.9ml (0.1 ml step)
Purge Rate :
10ml:400.0ml/h, 5ml: 200ml/h
KVO Rate :
Occlusion pressure :
Three level setting LOW, MEDIUM or HIGH
Alarms :
Near empty, Syringe empty, Volume complete (when limit volume is set), Occlusion, Syringe loose, Operation error, Low battery, device failures.
Three levels of alarm volume LOW, MEDIUM or HIGH
Bolus Rate :
Bolus Volume :
Maximum of 25ml
Interface :
RS-232 (Reserved port)
Power source :
AC power supply: AC 100 to 240V( +/-10%),50/60Hz;
Built-in Lithium Battery:  Rechargeable, 11.1V, 2000mAh.
8 hours of continuous operation.
Accessories :
AC power line, Operational manual
Protection Class :
Class I, Type CF,IPX4
Dimension :
Net weight :
