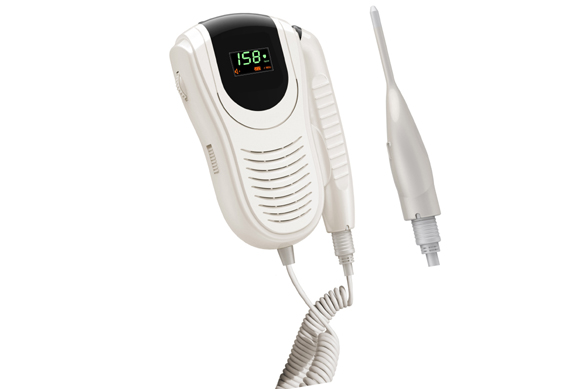

Brief Description
●  Easy to operate
●  LCD with color light or OLED displays the FHR,battery indicator,speaker volume and fetal heart beating
      rhythm indication.
●  High sensitive transducer, Low ultrasound power, more safety to the fetus.
●  Built-in Inner speaker.
●  AA dry battery or rechargeable battery acceptable
●  Accurate FHR and the same advanced FHR algorithm with that used in fetal monitor
●  Automatic power-off when no signal or no operation
Main Technical Parameters
Temperature: +5℃ ~ +40℃
Humidity: < 85%
Atmospheric pressure: 86kPa ~ 106kPa
Transport and storage temperature:
Temperature: -10℃ ~ +55℃
Humidity: < 93%
Atmospheric pressure: 86kPa ~ 106kPa
Display: LCD , OLED or TFT LCD display
Capability of fetal heart rate:
Measurement range: 50 ~210 bpm
Accuracy : ±2 bpm
Speaker power: 1W
Recommended battery type:
2 AA batteries,can meet more than 250 minutes inspection requirement.
Transducer:
Working frequency: 2.0MHz、2.5MHz、3.0MHz ±5%
P_:< 0.1MPa Iob< 1mW/cm2
Ispta<5mW/ cm2
Working style: Continuous/Pulsed Doppler
Effective ultrasound send/incept area: 310 mm2 ±10%(pulsed doppler), 160 mm2 ±10%(continuous doppler)
Total sensitivity: ≥ 90 dB, at the distance 200 mm to the surface of the probe, the target frequency is 140 bpm.
Temperature:
The measurement range: 28℃--43.5℃; measurement accuracy: ±0.2℃
Dimension
Size: 32 mm(Depth)*138 mm (width)*96 mm (height)
Weight: 270g±20g(Including battery)
