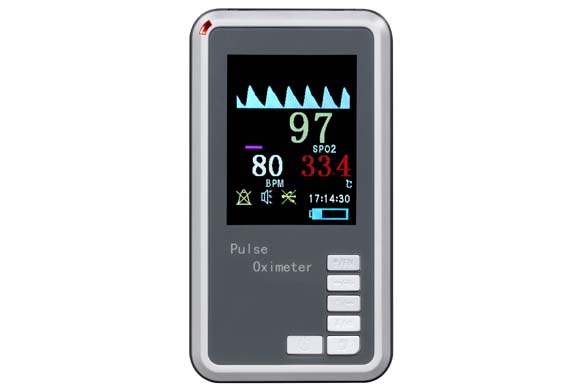

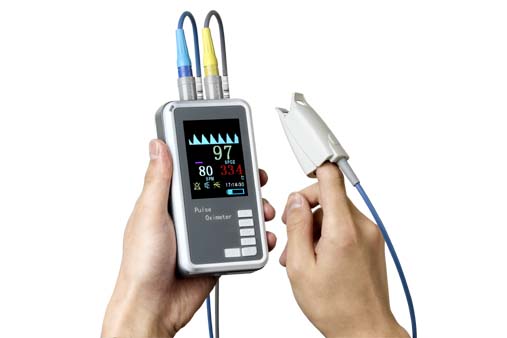

Brief Description
●  Monitoring SPO2, TEMP, PR & PLETH
●  Handheld, compact, easy for carrying and handling
●  2.8 inch color TFT LCD in real time display, displayable in big font and big screen
●  Unique software for telemonitoring by transmitting data synchronously via internet
●  Long time monitoring and sleeping monitoring
●  Storage/Review trend data up to 3888 groups, data save time interval settable
●  Via USB or Bluetooth wireless, to upload history data to PC for review, printing or storage
●  Audio and visual alarm when parameters exceeded and sensor-off
●  Common AA alkaline or rechargeable batteries to support 6 continuous working hours
●  Battery capacity indicator. Automatic shutdown for power saving
Main Technical Parameters
General
Monitoring Parameters: SpO2、PR、PLETH、Pulse strength、TEMP
Signal sockets:SpO2 socket、PR socket、TEMP socket、USB socket(for charge battery and transmit data)
Display screen
Type: 240 × 320 dot matrix color TFT LCD screen
Display area: 43mm×58mm
Functions
PLETH: The monitor can display PLETH waveform
Intelligent parameter monitoring screen: The monitor automatically selects the parameter measurements to display according to the probes connected to the monitor.
Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.
Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.
Power saving: The monitor will automatic shut down to save power. The time is settable.
Trend: Storage/Review trend data up to 3888 groups, data save time being set freely
Data storage: The saved data will never be lost even if the monitor is powered off.
Communication: Transmitting the patient’s trend to a PC for display, observation, saving and printing via USB or Bluetooth wireless
Power Requirements
Battery type: common 1.5V AA alkaline or rechargeable batteries
Run time: 6 hours
Environment
Temperature
Operation: 0C ~ 45 C
Transportation and storage: -20C ~ 60 C
Humidity
Operation: 15% - 95 %( noncondensing)
Transportation and storage: 10% - 95 % (noncondensing)
Altitude
Operation: 86 KPa ~106 KPa
Transportation and storage: 50KPa~106 KPa
Parameter Specifications
SpO2
Patient: Adult, pediatric,neonate
Range: 0% - 100%
Resolution: 1 %
Accuracy: 70% - 99%: 2 %
0% - 69%: Unspecified
PR
Range: 0 bpm ~250bpm
Resolution: 1bpm
Accuracy: 2bpm
TEMP
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Range: 0℃~50℃
Resolution: 0.1℃
Accuracy: 0.2℃
Dimensions
Dimension: 130x70x32mm
Net Weight: 150g
Gross Weight: 500g
Package Size: 210x155x60mm
Color: Gray with white
Configurations
Handheld Pulse Oximeter main unit                            1   unit
Adult finger SpO2 sensor                                               1   piece
Skin surface skin TEMP probe                                      1   piece
USB communication cable                                            1   piece
VSDV/Guardian Software disk                                       1   piece
The operator’s manual                                                1   piece
Optional
Child finger/toe SpO2 sensor
Bluetooth wireless technical
