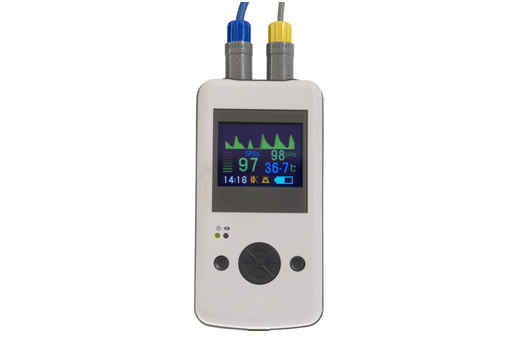

Brief Description

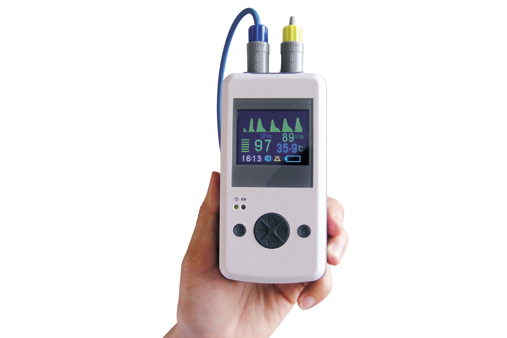

●  Handheld, compact, easy for carrying and handling
●  Intelligent parameter monitoring interfaces, measuring SPO2, TEMP, PR & PLETH
●  Clear and bright color OLED in real time display, displayable in big font and big screen
●  Unique software for telemonitoring by transmitting data synchronously via internet
●  Long time monitoring and sleeping monitoring
●  Storage/Review trend data up to 3888 groups, data save time interval settable
●  History data uploading to PC for review, printing or storage
●  Audio and visual alarm when parameters exceeded and sensor-off
●  Built-in rechargeable Li-ion battery, up to 15-hour running time
●  Two types for charging battery: USB port for recharged by PC or by AC adapter
●  Battery capacity indicator. Automatic shutdown for power saving
Main Technical Parameters
Monitoring Parameters: SpO2、PR、PLETH、Pulse strength、TEMP

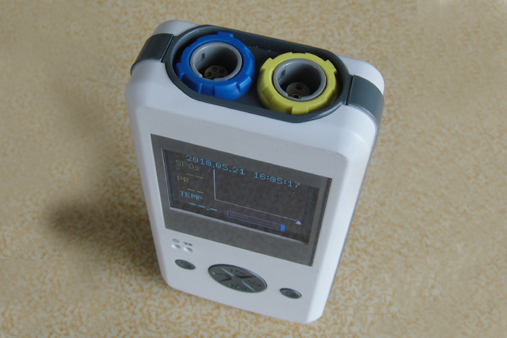

Signal sockets:SpO2 socket、PR socket、TEMP socket、USB socket(for charge battery and transmit data)
Display screen
Type: 160 ×128 dot matrix color OLED screen
Display area: 42mm×33mm
LED:Dual-color LED (red/green)
PLETH: The monitor can display PLETH waveform
Intelligent parameter monitoring screen: The monitor automatically selects the parameter measurements to display according to the probes connected to the monitor.
Audio and visual alarm: The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off.
Prompting: Icons of battery capacity, pulse sound switch and alarm sound switch.
Power saving: The monitor will automatic shut down to save power. The time is settable.
Trend: Storage/Review trend data up to 3888 groups, data save time being set freely
Data storage: The saved data will never be lost even if the monitor is powered off.
Communication: Transmitting the patient’s trend to a PC for display, observation, saving and printing.
Electrical specifications
Working Voltage: D.C. 3.7V/3000mAH
AC power adaptor
Input: AC 100 V~240V, 50/60Hz, 5VA
Output: D.C. 5V
Internal battery
Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery
Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)
Recharge time: 8 hours
Operation: 0C ~ 45 C
Transportation and storage: -20C ~ 60 C
Operation: 15% - 95 %( noncondensing)
Transportation and storage: 10% - 95 % (noncondensing)
Operation: 86 KPa ~106 KPa
Transportation and storage: 50KPa~106 KPa
Parameter Specifications
Patient: Adult, child
Range: 0% - 100%
Resolution: 1 %
Accuracy: 70% - 99%: 2 %
0% - 69%: Unspecified
Range: 0 bpm ~250bpm
Resolution: 1bpm
Accuracy: 2bpm
Channel: 1
Input: Body surface thermal-sensitive resistor temperature sensor
Range: 0℃~50℃
Resolution: 0.1℃
Accuracy: 0.2℃
Dimension: 115x60x28mm
Net Weight: 195g
Gross Weight: 915g
Package Size: 220x160x75mm
Color: White
Handheld Pulse Oximeter main unit                              1unit
Adult finger SpO2 sensor                                                 1 pc
Surface TEMP probe                                                         1 pc
AC power adaptor                                                              1 pc
Communication cable                                                      1 pc
The operator’s manual                                                  1 pc
Child finger/toe SpO2 sensor
