Brief Description

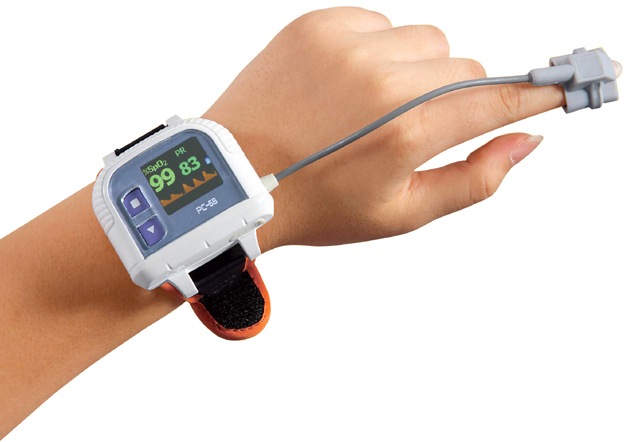

● Small, light and easy to wear,Applicable for longtime continuous monitoring;
● Large True color OLED display of SpO2, PR, Pulse Bar,PI & Plethysmogram;
● Automatic start measuring when the finger is put into the sensor cap;
● Automatic power saving when the finger is out of the sensor or no key operation for about 20 seconds;
● Audible & Visual alarm function, alarm limits adjustable;
● Real time clock display
● Data trend curve review
● Real-time store and recall SpO2 and Pulse Rate value
● Up to 70 hours of oximetry data storage(Record data once every 1/4/8seconds);
● Data record can be uploaded to PC;(Oximeter date manager software available)
● Low battery voltage indication)
● More than 50 hours continuous working time with 2AAA alkaline batteries
Main Technical Parameters
A. Display mode:
Color OLED Display
B. Power supply requirement:
1.5V (AAA size) alkaline battery × 2
Supply voltage: 2.7 V~3.3V
Continues working time (display is off): 70hours
C. Operating current:
≤40mA
D. SpO2 Parameter Specifications
Measuring range: 35%~99%
Accuracy: 75%~99% ±2%
50%~75% ±3%
E. Pulse Rate Parameter Specifications
Measuring range: 25bpm~250bpm
Accuracy: ±2bpm or ±2% (whichever is greater)
F.Perfusion Index Displa
Range: 0.2%~20%
G.Performance under low perfusion condition
The measurement accuracy still keeps the above specification while the perfusion index is as low as 0.5%.
H.Interference resistance performance
When tested by SpO2 simulator with interference settings such as sunlight or 50/60Hz fluorescent lamp light, the measurement of SpO2 and PR still meets the requirement specified above.
I.Dimensions:
W 59mm×D 49mm×H 22mm
Net Weight: about 60g (not including batteries)
J.Classification:
The type of protection against electric shock:
Internally powered equipment.
The degree of protection against electric shock:Type BF applied part.
The degree of protection against harmful ingress of liquids:
Ordinary equipment without protection against ingress of water.
Electro-Magnetic Compatibility: Group I, Class B
