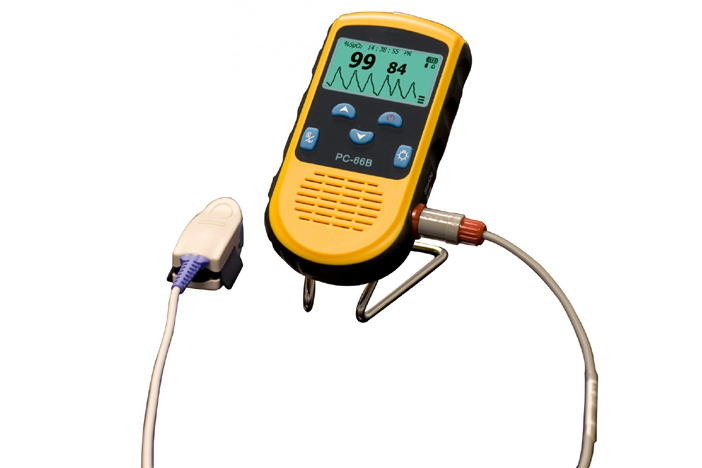

Brief Description
● It is lightweight, small in size and easy to take;
●High resolution LCD(with LED backlight) to display of SpO2, PR , Pulse Bar, PI & Plethysmogram;
●Real-time store and recall SpO2 and Pulse Rate value;
●Up to 72 hours of oximetry data storage (Record data once every 1/4/8 seconds);
●Data record can be uploaded to PC; (Oximeter date manager software available);
●Audible & Visual alarm function, alarm limits adjustable;
●Power management function, low battery voltage indication;
●Power management function, low battery voltage indication;
●More than 50 hours continuous working time with 3AA alkaline batteries;
●3 AA alkaline or rechargeable batteries or AC/DC adapter (optional);

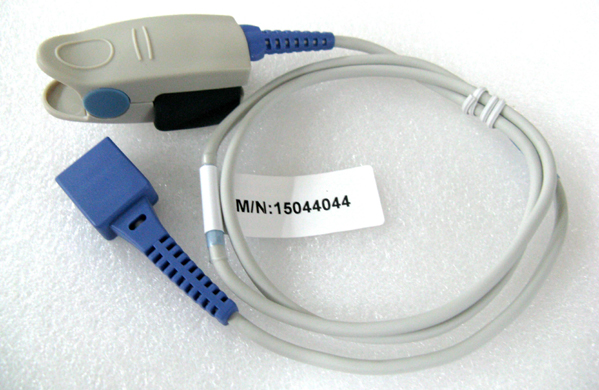

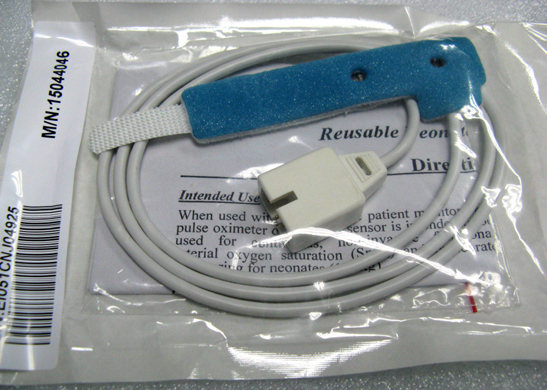

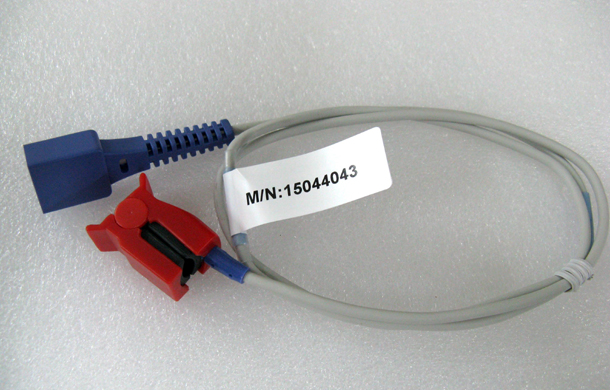

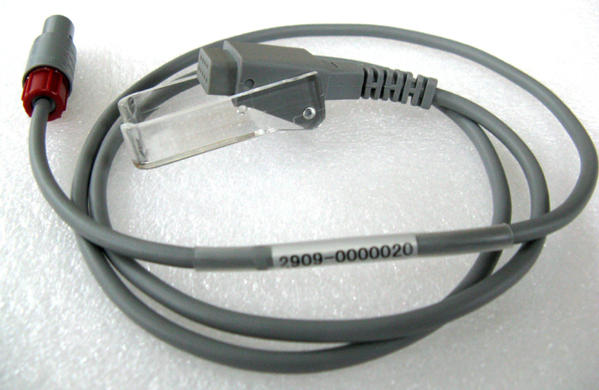

●Neonate/pediatric/adult probe changeable and optional
Main Technical Parameters
A. Display mode:
Dot-matrix monochrome LCD
B. Power supply requirement:
3 × LR6 (AA size) alkaline batteries
Supply voltage: 4.5VDC
Operating current: <50mA
C.Environment requirement
Operating Temperature:5°C ~40°C
Operating Humidity:30%~80%
Atmospheric pressure: 70kPa~106kPa
D. SpO2 Parameter Specifications
Measuring range: 35%~99%
Accuracy: ±2% (during 75%~99%)
±3% (during 70%~75%)
SpO2 alarm: Lower limit: 90%
E. Pulse Rate Parameter Specifications
Measuring range: 30bpm~240bpm
Accuracy: ±2bpm or ±2% (which ever is greater)
Pulse Rate alarm: Upper limit: 120bpm
Lower limit: 50bpm
F. Perfusion Index Display
Range: 0%~20%.
G.Data Record
Record data once every 1/2/4/8 seconds, up to 70-hour record
H. The performance under low perfusion condition
The accurancy of SpO2 and PR measurement still meet the precision described above when the modulation amplitude is as low as 0.5%
I.Resistance to interference of surrounding light:
The difference between the SpO2 value measured in the condition of indoor natural light and that of darkroom is less than ±1%.
J. Resistance to 50Hz / 60Hz interference:
SpO2 and Pulse Rate are precise which are tested by BIO-TEK pulse oximeter simulator.
145 mm (L) × 74 mm (W) × 29 mm (H)
Net Weight: 210g (including batteries)
The type of protection against electric shock:
Internally powered equipment
The degree of protection against electric shock:
Type BF applied parts.
The degree of protection against harmful ingress of liquids:
Ordinary equipment without protection against ingress of water.
Electro-Magnetic Compatibility:
Group I, Class B
