Brief Description

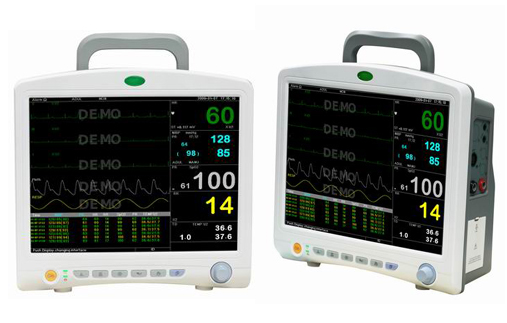

●   15" high resolution color TFT screen;
●   Standard parameters: ECG, SpO2, RESP, NIBP, 2-TEMP & PR; Optional: IBP&EtCO2;
●   5 or 9-channel waveform display with trend coexistance, switchable to large font;
●   Arrhythmia analysis and ST segment analysis;
●   7-channel ECG waveforms display simultaneously;
●   Eight channel real-time waveforms and two hours’ trends viewing;
●   Trend data analysis for 8/24/120 hours;
●   Storage & review 500 groups of parameter data & 24-hour ECG waveforms;
●   Protection against interference from defibrillator & electrosurgical unit;
●   Adult / Pediatric / Neonatal measurement modes;
●   Visual and audible alarms; Networking capability;
●   Built-in rechargeable battery; Optional built-in thermal printer.

Main Technical Parameters

NIBP Monitoring
Measuring method:Automatic measurement by intelligent oscillating method.
Cuff inflation time: <30 seconds (typical adult cuff)
Initial cuff inflation pressure:Adult mode: 180mmHg
Infant mode: 120mmHg
Neonate mode: 90mmHg.
Overpressure protection limit: Adult and infant mode: 300 mmHg
Neonate mode: 140 mmHg
Measuring range Systolic pressure
Adult and infant: 25mmH~265mmHg
Neonate: 25mmHg~135mmHg
Diastolic pressure
Adult and infant:12mmHg~220mmHg
Neonate: 12mmHg~110mmHg
Mean arterial pressure
Adult and infant:18mmHg~245mmHg
Neonate: 18mmHg~120 mmHg
Measurement accuracy:Systolic ±10%
Diastolic ±10%
MAP ±10%
Measurement mode:Manual, Auto, STAT
Automatic measuring intervals:1~240min
interval tolerance: <10s
RESP Monitoring
Monitoring range:0rpm~120rpm
Monitoring accuracy:±10%
SpO2 & Pulse Rate Monitoring
Transducer:dual-wave length LED
SpO2 measuring range:35%~100%
Low perfusion capability:0.4%~5%
SpO2 display accuracy:75%~100% ±2%
50%~75% ±3%
PR measuring range:30bpm~240bpm
PR measuring accuracy:±2bpm
ECG Monitoring
Heart rate measurement:±0.4mVp~±3mVp
Heart rate display range:15bpm~300bpm
Heart rate display accuracy:±1% or ±2bpm, whichever is greater
Heart rate alarm delay time ≤12s
Sensitivity selection:Auto, ×1/2, ×1, ×2, ×4 tolerance: ≤5%
Sweeping speed:12.5mm/s, 25mm/s, 50mm/s
tolerance: ≤10%
ECG noise level ≤30μVP-P
ECG input loop current ≤0.1μA
Input impedance ≥5MΩ
Common-mode rejection ratio ≥80dB
Time constant Monitoring mode≥0.3s
Diagnostic mode≥3.2s
Frequency response
Monitoring mode: 0.5Hz~25Hz
Diagnostic modes: 0.05Hz~75Hz
TEMP Monitoring
Measuring range :25.0℃~45.0℃
Measuring accuracy :±0.2℃
Response time ≤120s
CO2 Monitoring
Measuring method:sidestream or mainstream
Measuring parameters:respiration rate, EtCO2 and InsCO2
CO2 measurement Range: 0~99mmHg
Accuracy: ±4mmHg
Respiration rate measuring range:1~99rpm
Flow rate:50ml/min
15" high resolution color TFT screen
