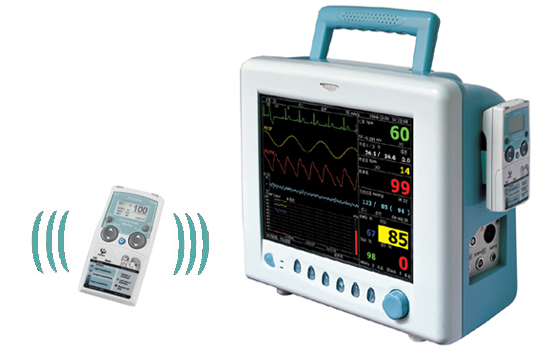

Brief Description
●   12.1'' color TFT display
●    Parameters of ECG,SpO2,NIBP,TEMP,RESP,PR,FHR,TOCO & FM
●    Waveforms of maternal ECG, RESP and SpO2; Waveform freezing function
●    Manual and automatic FM marking function
●    ECG monitoring with full leads selection
●    Graphical trends of FHR,TOCO,SpO2,PR,NIBP up to 12 hours
●    Up to 400 groups of NIBP data and FHR,TOCO,HR,TEMP,SpO2 & PR
●    Visual and audible alarms; Networking capability
●    Built-in rechargeable battery; Optional built-in thermal printer
Main Technical Parameters
Cerebral State Monitoring
EEG sensitivity ±400μV
Noise level <2μVp-p, <0.4μV RMS, 1~250Hz
CMR >140dB
Input impedance >50 Mohm
Sample rate 2000 samples/sec. (14 bits equivalent)
CSI and update 0-100. Filter 6-42 Hz, 1sec. update
EMG 0-100 logarithmic. Filter 75-85 Hz, 1 sec. update
BS% 0-100%. Filter 2-42 Hz, 1sec. update
Digital output Wireless to R232 link (ISM 2.4 GHz)
Wireless range Up to 10 meters
ECG Monitoring
Heart rate measurement ±0.4mVp~±3mVp
Heart rate display range 20bpm~250bpm
Heart rate display accuracy ±1% or ±2bpm, whichever is greater
Heart rate alarm delay time ≤12s
Sensitivity selection Auto, ×1/2, ×1, ×2, ×4 tolerance: ≤5%
Sweeping speed 12.5mm/s, 25mm/s, 50mm/s
tolerance: ≤10%
ECG noise level ≤30μVP-P
ECG input loop current ≤0.1μA
Input impedance ≥5MΩ
Common-mode rejection ratio ≥80dB
Time constant Monitoring mode≥0.3s
Diagnostic mode≥3.2s
Frequency response Monitoring mode: 0.5Hz~25Hz
Diagnostic modes: 0.05Hz~75Hz
RESP Monitoring
RESP monitoring range 0rpm~120rpm
RESP monitoring accuracy ±10%
RESP alarm range 0bpm~100bpm Alarm tolerance: ±10%
Alarm tolerance: ±10%
TEMP Monitoring
Measuring range 25.0℃~45.0℃
Measuring accuracy ±0.2℃
Response time ≤150s
NIBP Monitoring
Measuring method Automatic measurement by intelligent oscillating method.
Initial cuff inflation pressure Adult and infant mode: 180mmHg
Neonate mode: 120mmHg.
Overpressure protection limit: Adult and infant mode: 300 mmHg
Neonate mode: 150 mmHg
Measuring range Systolic pressure:
Adult and infant: 25mmH~265mmHg
Neonate: 25mmHg~135mmHg
Diastolic pressure:
Adult and infant:12mmHg~220mmHg
Neonate: 12mmHg~110mmHg
Mean arterial pressure:
Adult and infant:18mmHg~245mmHg
Neonate: 18mmHg~120 mmHg
Measurement accuracy Systolic ±10%
Diastolic ±10%
MAP ±10%
Measurement mode Manual, Auto, STAT
SpO2 & Pulse Rate Monitoring
Transducer dual-wave length LED
SpO2 measuring range 35%~100%
Low perfusion capability as low as 0.4%
SpO2 display accuracy 75%~99% ±2%
50%~75% ±3%
PR measuring range 30bpm~250bpm
PR measuring accuracy ±2bpm
