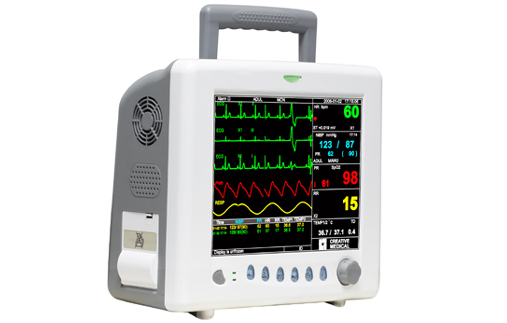

Brief Description

●    12.1'' high resolution color TFT display, 5-channel waveform display;
●    Standard parameters: ECG, RESP, SpO2, NIBP, 2-TEMP, PR; Optional: IBP&EtCO2
●    Arrhythmia analysis and ST segment analysis
●    Up to 800groups parameter data & 24-hour ECG waveform storage and recall
●    480-hour graphic and tabular trends for all parameters
●    7-channel ECG waveforms display simultaneously
●    Adult / Pediatric / Neonatal measurement modes
●    Visual and audible alarms; Networking capability
●    Built-in rechargeable battery;Optional built-in thermal printer
●    Protection against interference from defibrillator, electrosurgical knife

Main Technical Parameters

NIBP Monitoring
Measuring method :Automatic measurement by intelligent oscillating method.
Cuff inflation time:<30 seconds (typical adult cuff).
Initial cuff inflation pressure:Adult and infant mode: 180mmHg.
Neonate mode: 120mmHg.
Overpressure protection limit:Adult and infant mode: 300 mmHg.
Neonate mode: 140 mmHg.
Measuring range.
Systolic pressure:Adult and infant: 25mmH~265mmHg.
Neonate: 25mmHg~135mmHg.
Diastolic pressure.
Adult and infant:12mmHg~220mmHg.
Neonate: 12mmHg~110mmHg.
Mean arterial pressure: Adult and infant:18mmHg~245mmHg.
Neonate: 18mmHg~120 mmHg.
Measurement accuracy:Systolic ±10%.
Diastolic ±10%.
MAP ±10%.
Measurement mode:Manual, Auto, STAT.
Automatic measuring intervals:1~240min.
interval tolerance: <10s.
TEMP Monitoring.
Measuring range :15.0℃~45.0℃.
Measuring accuracy :±0.2℃.
SpO2 & Pulse Rate Monitoring
Transducer:dual-wave length LED.
SpO2 measuring range:35%~100%.
Low perfusion capability:0.4%~5%.
SpO2 display accuracy:90%~99% ±2%.
70%~89% ±4% .
40%~69% ±6%.
PR measuring range:30bpm~250bpm.
PR measuring accuracy:±2bpm.
ECG Monitoring.
Heart rate measurement:±0.4mVp~±3mVp.
Heart rate display range:20bpm~250bpm.
Display accuracy:±1% or ±2bpm, whichever is greater.
Heart rate alarm delay time:≤12s.
Sensitivity selection:Auto, ×1/2, ×1, ×2, ×4 .
tolerance: ≤5%.
Sweeping speed:12.5mm/s, 25mm/s, 50mm/s .
tolerance: ≤10%.
ECG noise level ≤30μVP-P.
ECG input loop current ≤0.1μA.
Input impedance ≥5MΩ.
Common-mode rejection ratio :≥80dB.
Time constant:Monitoring mode≥0.3s.
Diagnostic mode≥3.2s .
Frequency response.
Monitoring mode: 0.5Hz~25Hz.
Diagnostic modes: 0.05Hz~75Hz.
RESP Monitoring
Monitoring range:0rpm~120rpm.
Monitoring accuracy:±10%.
RESP alarm range:0bpm~100bpm.
Alarm tolerance: ±10%.
Other Technical Specifications
Power supply:100~250Vac, 50/60Hz.
Power consumption <80 VA.
Display mode:12.1 inches TFT color LCD.
Alarming mode :Audible-visual alarm.
Networking por:Ethernet port.
Standard Configuration
Optional Configuration
IBP, EtCO2 and Built-in printer.
