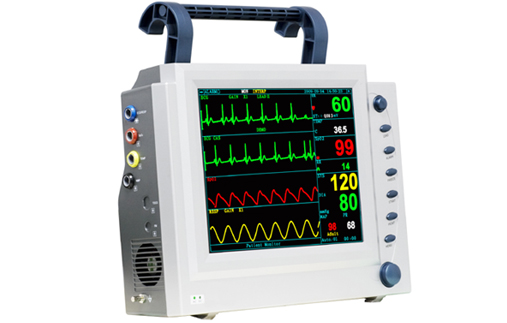

Brief Description

●   12.1'' high resolution color TFT display, 4-channel waveform display;
●   Standard parameters: ECG, RESP, SpO2, NIBP, TEMP, PR; Optional: IBP or EtCO2
●   Arrhythmia analysis and ST segment analysis
●   Up to 400 groups parameter data storage and recall
●   96-hour graphic and tabular trends for all parameters
●   Protection against interference from defibrillator, electrosurgical knife
●   Adult / Pediatric / Neonatal measurement modes
●   Visual and audible alarms; Networking capability
●   Built-in rechargeable
●   Optional built-in thermal printer

Main Technical Parameters

NIBP Monitoring
Measuring method:Automatic measurement by intelligent oscillating method.
Initial cuff inflation pressure:≤10 seconds (typical adult cuff)
Initial cuff inflation pressure: Adult and infant mode: 180mmHg
Neonate mode: 120mmHg
Overpressure protection limit: Adult and infant mode: 300 mmHg
Neonate mode: 140 mmHg
Measuring range
Systolic pressure:Adult and infant: 25mmH~265mmHg
Neonate: 25mmHg~135mmHg
Diastolic pressure:Adult and infant:18mmHg~245mmHg
Neonate: 18mmHg~120 mmHg
Measurement accuracy:Systolic ±10%
Diastolic ±10%
MAP ±10%
Measurement mode:Manual, Auto, STAT
Automatic measuring intervals:1~240min
interval tolerance: <10s
RESP Monitoring
Monitoring range:0rpm~120rpm
Monitoring accuracy:±10%
ECG Monitoring
Heart rate measurement:±0.4mVp~±3mVp
Heart rate display range:20bpm~250bpm
Display accuracy:±1% or ±2bpm, whichever is greater
Heart rate alarm delay time ≤12s
Sensitivity selection:Auto, ×1/2, ×1, ×2, ×4
tolerance: ≤5%
Sweeping speed:12.5mm/s, 25mm/s, 50mm/s
tolerance: ≤10%
ECG noise level ≤30μVP-P
ECG input loop current ≤0.1μA
Input impedance ≥5MΩ
Common-mode rejection ratio ≥80dB
Time constant Monitoring mode≥0.3s
Diagnostic mode≥3.2s
Frequency response Monitoring mode: 0.5Hz~25Hz
Diagnostic modes: 0.05Hz~75Hz
SpO2 & Pulse Rate Monitoring
Transducer:dual-wave length LED
SpO2 measuring range:35%~100%
Low perfusion capability:0.4%~5%
SpO2 display accuracy:90%~99% ±2%
70%~89% ±4%
40%~69% ±6%
PR measuring range:30bpm~240bpm
PR measuring accuracy ±2bpm.
TEMP Monitoring
Measuring range :25.0℃~45.0℃
Measuring accuracy :±0.2℃
TEMP responding time ≤120s
IBP Monitoring
Measuring method:Strain gauge transducer
Sensitivity: 5μV/ V/mmHg.
Measuring parameters:systolic pressure, diastolic pressure, mean arterial pressure and pulse rate
Measurement Range:-10mmHg~300mmHg
Accuracy :0mmHg~100mmHg: ±4mmHg
100mmHg~300mmHg: ±2%
PR measurement Range: 30bpm~300bpm
Accuracy:±1% or ±1bpm, whichever is greater.
Position of measurement
ART: arterial pressure
PA: pulmonary artery pressure
CVP: central venous pressure
RAP: right atrium pressure
LAP: left atrium pressure
ICP: intracranial pressure
Sampling rate:512Hz
Calibration methods:2 points calibration at 0 and 100mmHg
CO2 Monitoring
Measuring method:Side-stream
Measuring parameters:respiration rate, EtCO2 and InsCO2
CO2 measurement Range: 0~99mmHg
Accuracy: ±4mmHg
Respiration rate measuring range:1~99rpm
Flow rate:50ml/min
