Brief Description

●   10.4″ color TFT, 5-channel waveform display
●   Standard parameters: ECG, RESP, SpO2, NIBP, TEMP, PR
●   Arrhythmia analysis and ST segment analysis
●   Up to 400 groups parameter data storage and recall
●   96-hour graphic and tabular trends for all parameters
●   Protection against interference from defibrillator, electrosurgical knife

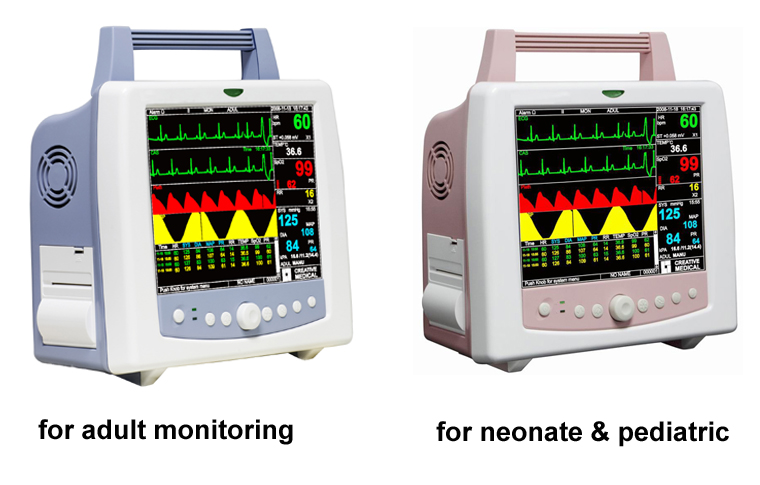

●   Adult / Pediatric / Neonatal measurement modes
●   Visual and audible alarms; Networking capability
●   Built-in rechargeable
●   Optional built-in thermal printer

Main Technical Parameters

NIBP Monitoring
Measuring method:Oscillometric Technique
Cuff inflation time:<10 seconds (typical adult cuff)
Initial cuff inflation pressure Adult mode: <180mmHg
Infant mode: <120mmHg
Neonate mode: <90mmHg
Overpressure protection limit:Adult and mode: 300 mmHg
Infant mode : 240mmHg
Neonate mode: 150 mmHg
Measuring range Systolic pressure:
Adult: 40mmHg~255mmHg
Infant: 40mmHg~200mmHg
Neonate: 40mmHg~135mmHg
Diastolic pressure:
Adultt: 20mmHg~215mmHg
Infant: 20mmHg~165mmHg
Neonate: 20mmHg~110mmHg
Mean arterial pressure:
Adult: 10mmHg~195mmHg
Infant: 10mmHg~150mmHg
Neonate: 10mmHg~95mmHg
NIBP accuracy:Maximum mean error: ±5 mmHg
Maximum Standard deviation: 8 mmHg
Measurement mode:Manual, Auto, STAT
TEMP Monitoring
Measuring range :25.0℃~45.0℃
Measuring accuracy :±0.2℃
Responding time :≤150s
RESP Monitoring
Monitoring range:0rpm~120rpm
Monitoring accuracy:±5% or ±2 rpm, whichever is greater
RESP alarm range:0bpm~100bpm
Alarm tolerance: ±5% or ±2 rpm, whichever is greater
ECG Monitoring
Heart rate measurement:±0.4mVp~±5mVp
Heart rate display range:20bpm~300bpm
Display accuracy:±1% or ±2bpm, whichever is greater
HR alarm delay time:≤10s
Sensitivity selection ×1/2, 5mm/mV tolerance: ±5%
×1, 10mm/mV tolerance: ±5%
×2, 20mm/mv tolerance: ±5%
Sweeping speed 12.5mm/s, 25mm/s, 50mm/s
tolerance: ≤10%
ECG noise level ≤30μVP-P
ECG input loop current ≤0.1μA
Input impedance ≥5MΩ
Common-mode rejection ratio ≥89dB
Time constant Monitoring mode≥0.3s
Diagnostic mode≥3.2s
Frequency response Monitoring mode: 0.5Hz~40Hz
Diagnostic modes: 0.05Hz~75Hz
SpO2 & Pulse Rate Monitoring
Transducer:dual-wave length LED
SpO2 measuring range:35%~100%
Low perfusion capability:0.4%~5%
SpO2 display accuracy:50%~100% 3%
PR measuring range:30bpm~240bpm
PR measuring accuracy:±2bpm or ±2%, whichever is greater.
Other Technical Specifications
Power supply:100~250Vac, 50/60Hz
Power consumption:See the nameplate on the monitor
Display mode:10.4 inches TFT color LCD
Alarming mode :Audible-visual alarm
Networking por:Ethernet port
Standard Configuration
