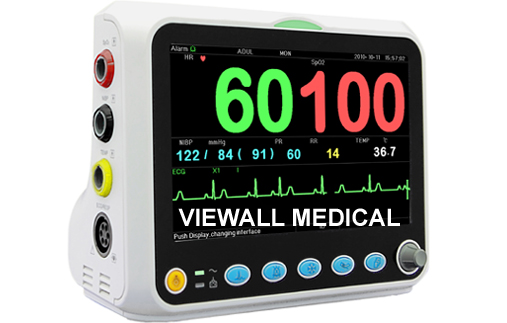

Brief Description

●   7'' high resolution color TFT display, 5-channel waveform display;
●   Standard parameters: ECG, RESP, SpO2, NIBP, TEMP, PR;
●   Arrhythmia analysis and ST segment analysis;
●   Up to 800 groups parameter data & 36-hour ECG waveform storage and recall;
●   480-hour graphic and tabular trends for all parameters;
●   7-channel ECG waveforms display simultaneously;
●   Protection against interference from defibrillator, electrosurgical knife;
●   Adult / Infant measurement modes;
●   Visual and audible alarms, built-in rechargeable battery.

Main Technical Parameters

NIBP Monitoring
Measuring method: Oscillometric Technique
Pneumatic pressure measuring range: 0 mmHg~300mmHg
Accuracy: ±3 mmHg
Cuff inflation time:<10 seconds (typical adult cuff)
Measurement time on average: < 90 seconds
Initial cuff inflation pressure Adult and infant mode: 180mmHg
Neonate mode: 120mmHg
Overpressure protection limit:Adult and infant mode: 300 mmHg
Neonate mode: 140 mmHg
Measuring range:Systolic pressure:
Adultt: 40mmH~255mmHg
Infant: 40mmHg~200mmHg
Mean arterial pressure:
Infant: 20mmHg~165mmHg
Diastolic pressure:
Infant: 10mmHg~150 mmHg
NIBP accuracy:Maximal mean difference: ±5 mmHg
Maximal standard deviation: 8 mmHg
Measurement mode:Manual, Auto, STAT
TEMP Monitoring
Measuring range :25.0℃~45.0℃
Measuring accuracy :±0.2℃
Responding time:≤150s
SpO2 & Pulse Rate Monitoring
Transducer:dual-wave length LED
SpO2 measuring range: 35%~100%
Low perfusion capability:0.4%~5%
SpO2 display accuracy:Not greater than 3% for SpO2 range from 70% to 100%
Low perfusion capability:0.4% ~ 5%
PR measuring range:30bpm~240bpm
PR measuring accuracy:±2bpm or ±2%, whichever is greater
CECG Monitoring
Input signals range in amplitude:±(0.4mVp~5mVp)
Heart rate display range:20bpm~300bpm
HR Display accuracy:±1% or ±2bpm, whichever is greater
HR alarm delay time:≤10s
Sensitivity selection:×1/2, ×1, ×2
tolerance: ≤5%
Sweeping speed:12.5mm/s, 25mm/s, 50mm/s
tolerance: ≤10%
ECG noise level ≤30μVP-P
ECG input loop current ≤0.1μA
Input impedance ≥5MΩ
Common-mode rejection ratio ≥89dB
Time constant:Monitoring mode≥0.3s
Diagnostic mode≥3.2s
Frequency response Monitoring mode: 0.5Hz~40Hz
Diagnostic modes: 0.05Hz~75Hz
RESP Monitoring
Monitoring range:0rpm~120rpm
Monitoring accuracy:±5% or ±2 rpm, whichever is greater
RESP alarm range:0bpm~120bpm
Alarm tolerance :±5% or ±2 rpm, whichever is greater
Other Technical Specifications
Power supply 100~240VAC, 50/60Hz
Rechargeable Li-ion battery specification:14.8V 2200mAh
Display mode:7 inches TFT color LCD
Alarming mode :Audible & visual alarm
Communication:Serial/Net port
Standard Configuration
