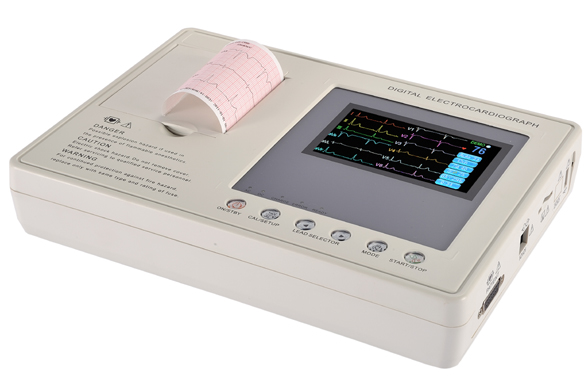

Brief Description
•  Full digital design
•  4.3 “ TFT color LCD display ,wide angle view
•  12 leads ECG signals simultaneously acquisition
•  High resolution thermal printer frequency response>150Hz
•  3 channels real-time print out. Width of paper 80mm
•  Digital filters eliminate EMG, AC, Drift interference
•  Color graphic LCD display ECG waveform
•  Safety meets IEC class I type CF
•  Weight 2.5kgs, size of A4 paper
•  OEM/ODM available
Main Technical Parameters
Input Circuit: Floating
Lead: 12 leads, Standard or Cabrera
           12 leads simultaneously acquisition
LCD Display: 480x272 color LCD display ECG waveform,Operation conditions, Time, Heart-rate
Sampling Rate: 1000 samples /sec /channel
A/D Converter: 12 bits
Recording Mode: AUTO1~AUTO4 ; MANUAL ; Long term (60sec)
Filter: AC (50Hz or 60Hz, -20dB)
           EMG (25Hz/35Hz/45Hz/75Hz/100Hz, -3dB)
           Drift (0.5Hz, -3dB)
CMRR: >80dB
              >100dB (with AC filter in use)
Input Circuit Current: < 0.1uA
Input Impedance: > 50Mohms
Time Constant: >3.2s
Frequency Response: 0.05~150Hz, -3dB
Noise Level: <15uVp-p
Sensitivity: 1.25. 2.5, 5, 10, 20, 40mm/mV±3%
Calibration Voltage: 1mV±3%
Patient Current Leakage: <10uA
Protection: Protect from defibrillation and pace-making
Recording Mode: Thermal Printer; 8dot/mm (Vertical)
                                40dot/mm (Horizontal, at 25mm/s)
Paper Speed: 5, 6.25, 10, 12.5, 25, 50mm/s ±2%
Paper Size: 80mm/20m roll type or Z-folded
Patient Cable: Standard 10 Wires
Safety: IEC class I type CF, IEC 60601-1, IEC60601-2-25
Power requirements: AC 230V/50Hz (or 115V/60Hz)
30 VA Build-in Li-poly rechargeable battery packs: 11.1V
Fuse Specifications: 2φ5 x 20mm
Dimension: 285(w) x 200(D) X 50(H) mm
Weight: Approx. 2.5Kgs
