Description:

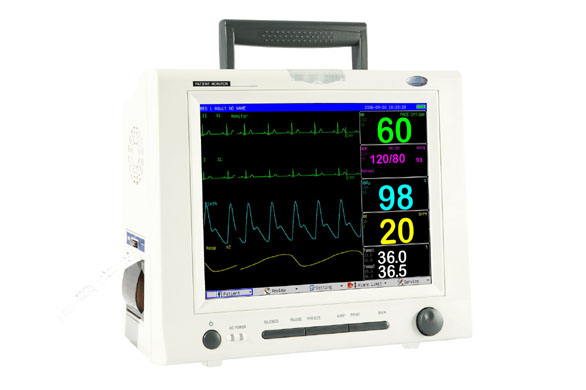

F8 multi-parameters monitor is specially designed for the monitoring application in the ICU/CCU
and NICU for adult, pediatric and neonatal patient to achieve maximum flexibility and optimum
performance. The intelligent monitoring, alarming, TCP/IP networking and many other features
will provide easy, integrated monitoring in any application.
Brief Description
• 12.1' color TFT LCD screen supports display max. 8 waveforms
• Visual On-display and integrated alarm light
• Real time S-T segment analysis, pace detection and arrhythmia analysis
• Drug calculation and titration table
• Extended advance function: IBP, BIS, EtCO2, Multi-Gas/ O2
• Suitable for monitoring adult, pediatric and neonatal patient.
• Display mode: Standard, Large Font, NIBP Trend, Trend Table, Full lead ECG, Oxy CRG.
• 720 hours of graphic and tabular trends of all parameters
Structure chart:

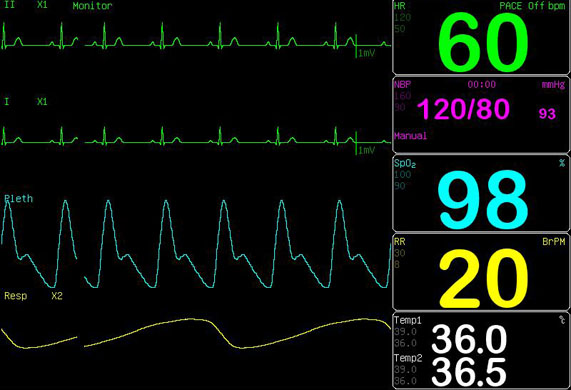

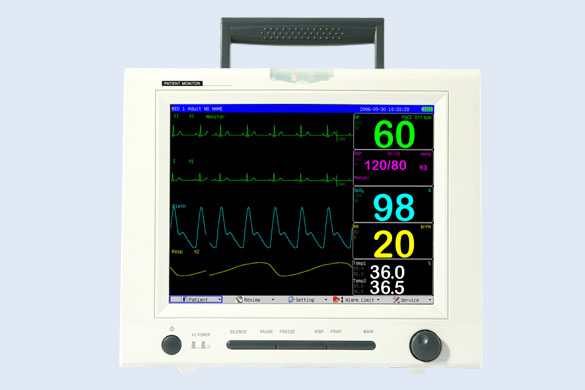

TFT Color display
F8 has an integrated color TFT display, with a wide viewing angle, providing high resolution data presentation. Multi-parameter monitor are displayed as large, easy-to-read numeric. 12.1 inch (800 x 600 pixel) color TFT LCD rolling and refreshing waveform display.
Information such as patient identification, date and time, alarm information, prompt and error message are also clearly shown.

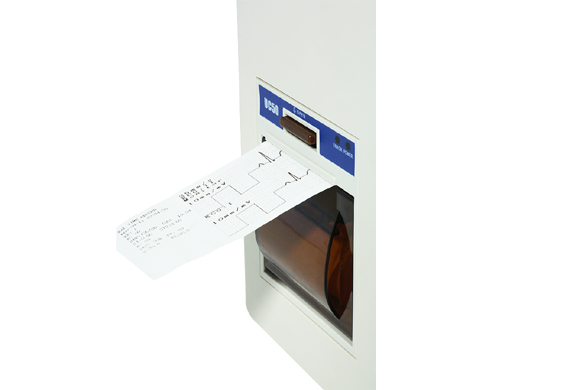

Printer:
F8 has an integrated, high resolution build-in thermal printer The monitor prints the time, the date, trace identification symbols and paper speed when first switch on.
Print width: 50mm
Waveform: 2 channels
Print speed: 25mm/s, 50mm/s

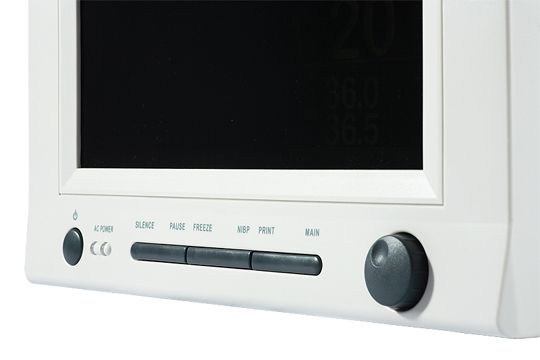

Alerting:
When an alarm limit is exceeded, it is signaled by the monitor in the following ways:
• An alarm tone sounds
• An alarm message is shown on the screen.
• The numeric of the alarming measurement flashes on the screen.
• Alarm Off/Pause Alarms function
  Alarm latching / non-latching:
  Visual
  Audible

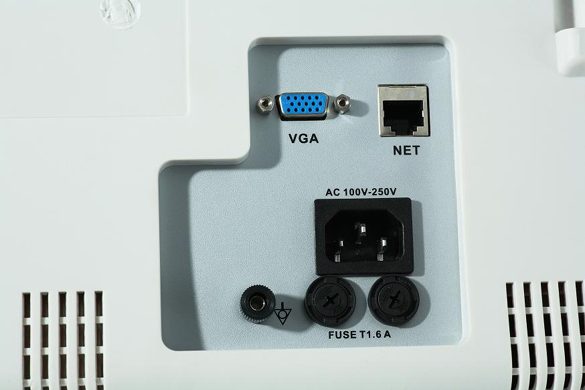

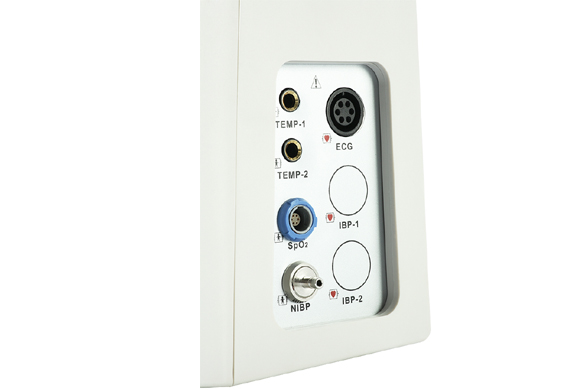

Monitor Connectors and Interfaces:
• Parameter cable interface
• AC power input socket
• Network interface
• External VGA interface for connection of alternate display
Standard Configuration:
• Anti-glare screen,
• Lithium battery

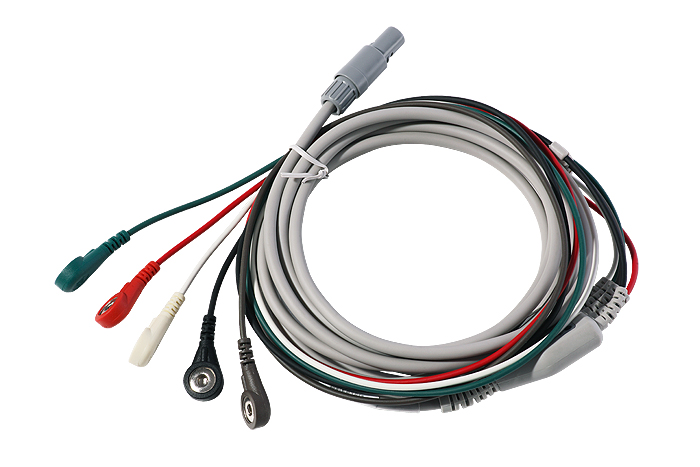

• 5-Lead ECG
• Respiration
• NIBP

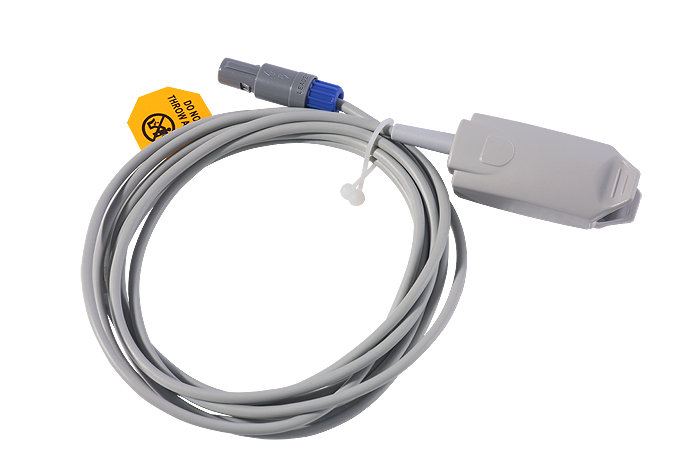

• SpO2
• Pulse Rate

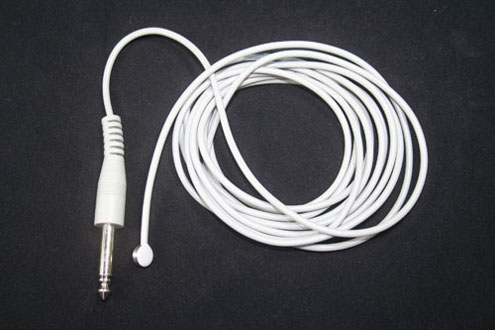

• Temperature
Optional Configuration:
• 2IBP, Depth of Anesthesia Monitoring Module (BIS)
• EtCO2 (Side stream CO2), Multi-Gas/ O2

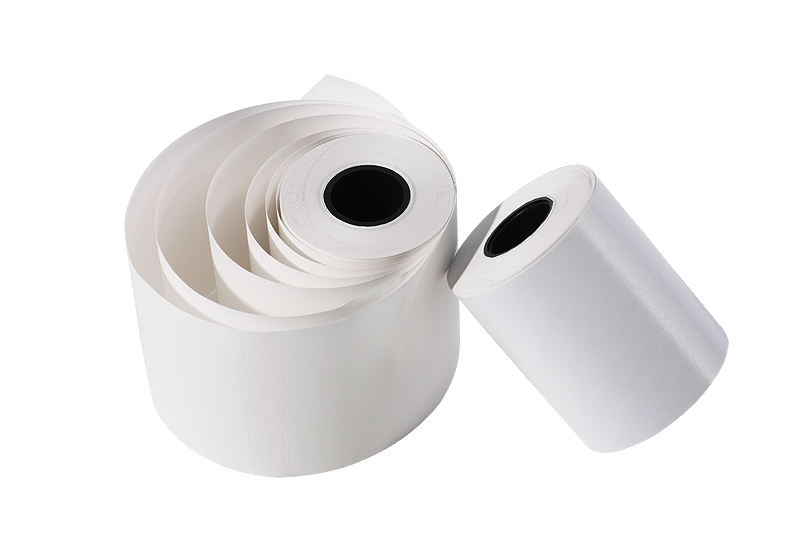

• VGA, Thermal printer (50 mm)

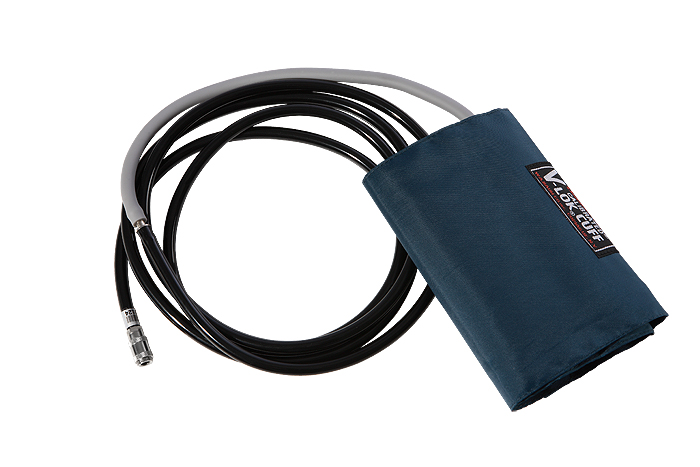

• Pediatric / neonatal accessories: reusable NIBP cuff & SpO2 probe
• disposable NIBP cuff & SpO2 probe
