● full digital image system
● DBF digital beam-forming
● 2D gray scale imaging unit
● M mode imaging

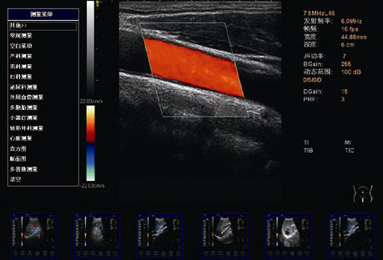

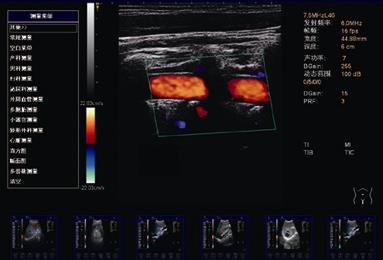

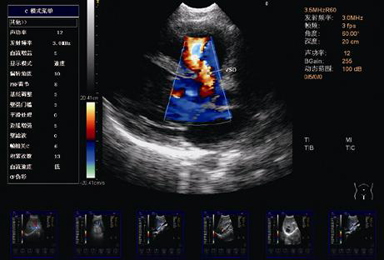

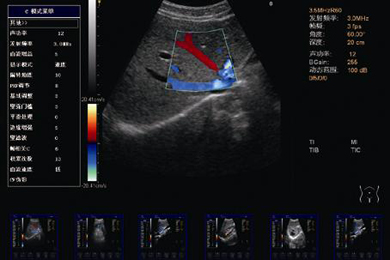

● Color doppler unit
● Colored tissue doppler imaging unit is available at the multiple color display modes, such as the speed, energy, variance., and making doppler and M mode quantitative measurement.
● real-time image clipboard function, with the storage and real-time loading callback functions for the cine loop
● Connectivity: medical digital image and DOCOM3.0 standard connector and the corresponding software.
Main Technical Parameters
1. High resolution and brightness LED monitor ≥ 15 inch
2. multiple beam forming function
3. DBF digital beam-forming, dynamic focusing, DFS dynamic change mark aperture is adjustable , multiplex signal be processing in paralleling, A/D ≥ 12 bit
4. Launch acoustic beaming focusing
5. Probes sockets ≥ 3

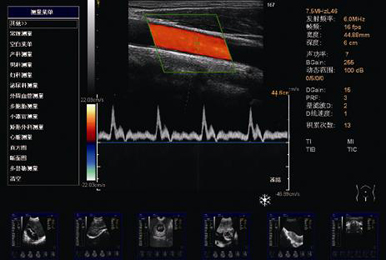

6. Three synchronous display function: 2D, color doppler and spectrum doppler display on the screen at the same time
7. Storage the image in Static and dynamic, dynamic storage time ≥500 seconds
8. Connectivity: medical digital image and DOCOM3.0 standard connector and the corresponding software.
9. IT. MI: display mechanical index and heat index
10. Main unit operation system: WINDOWS XP System
11. Display image in 2 or 4 at the same time
12. Display multiple image and playback some of them
Probe Configuration
Electric linear probe
Electric convex probe
Electric trans-vaginal probe
Micro-convex probe
16 different function probes
