Physical Specifications
|
|||||||
Dimension and Weight
|
Dimension
|
33cm (W)*27cm (D)*12cm (H)
|
|||||
Weight
|
standard configuration: 4 kg
|
||||||
Operation Environment
|
Power requirements
|
AC100-240V , 50/60Hz
|
|||||
Power
|
100VA
|
||||||
Temperature
|
5-40℃
|
||||||
Humidity
|
30-93% non-condensing
|
||||||
Fetal/Maternal Performance Specifications
|
|||||||
Performance
Specification
|

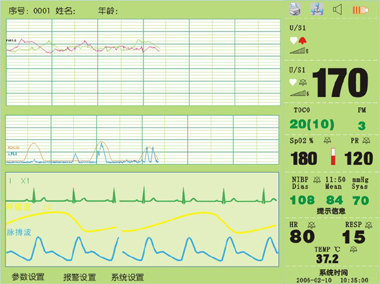

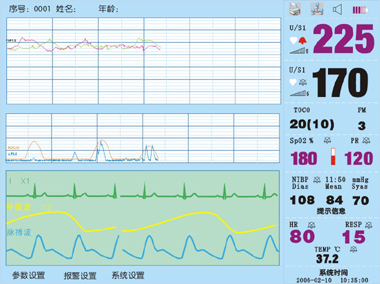

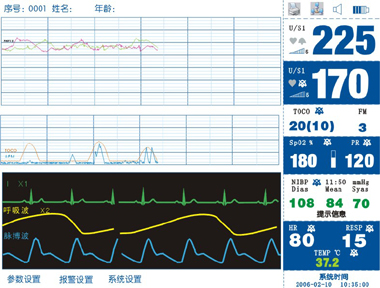

Display
|
12.1 inch (1024×768 pixel) color TFT –LCD
|
|||||
Indicator
|
Visual on-display and integrated, alarm light, audible alarm
|
||||||
Battery
|
Internal rechargeable Li-ion battery power
|
||||||
Alarm
|
Visual on-display and integrated, alarm light, audible alarm
|
||||||
Memory
|
48-hours memory for fetal traces
|
||||||
Printer
|
America standard/international standard Built-in thermal printer (110mm, 150mm, 210mm for option) 1/2/3cm/min real-time printing speed, fast print speed (stored traces)
|
||||||

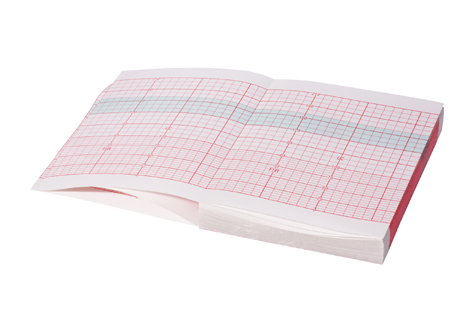

Paper
|
Z-fold, thermosensitive
|
||||||
Record Message
|
ID, name, age, date, time, print speed etc
|
||||||
CMS
|
Support connecting to central monitoring station through LAN (TCP/IP) or wireless connection
|
||||||
Fetal Technical Specifications
|
|||||||

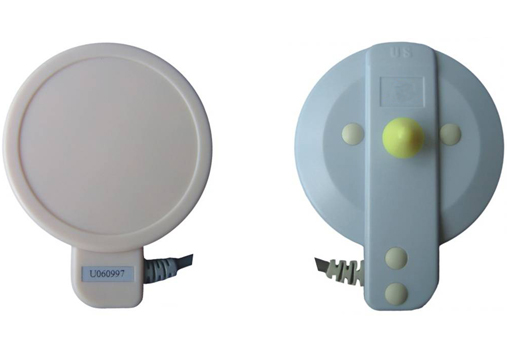

Ultrasound
(FHR)
|
Measurement range
|
US
|
0 to 240 bpm
|
||||
Resolution
|
Display
|
1bpm
|
|||||
Printer
|
1bpm
|
||||||
jitter@200 bpm
|
≤3bpm
|
||||||
Display update rate
|
0.25second
|
||||||
Beat to bea change(max.) for ultrasound
|
28bpm
|
||||||
US frequency
|
1MHz ± 5%Hz
|
||||||

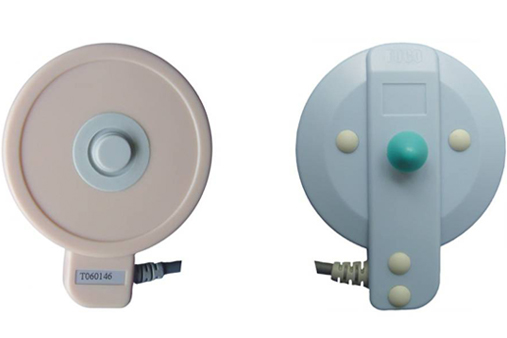

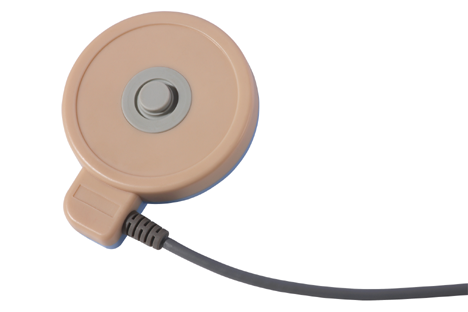

TOCO
|
Measurement method
|
Strain gauge sensor element
|
|||||
Sensitivity
|
1 unit =2.5g
|
||||||
Resolution
|
1 unit
|
||||||
Measurement range
|
500 units
|
||||||
Baseline setting
|
0, 5,10, 15, 20 can be selective
|
||||||
Update rate
|
0.25 second
|
||||||
Auto offset correction
|
3 second after connecting the transducer
|
||||||
Auto zero adjust
|
TOCO value is set to zero negative following a negative Measure value for 5 seconds
|
||||||
Auto Fetal
Movement (AFM)
|
Technique
|
Pulsed doppler ultrasound
|
|||||
Range
|
0-100%
|
||||||
Resolution
|
1%
|
||||||
Automatic fetal movement actograph
|
|||||||
Manual fetal movement marker
|
|||||||
Physical Specifications
|
|||||||
Dimension and Weight
|
Dimension
|
33cm (W)*27cm (D)*12cm (H)
|
|||||
Weight
|
standard configuration: 4 kg
|
||||||
Operation Environment
|
Power requirements
|
AC100-240V , 50/60Hz
|
|||||
Power
|
100VA
|
||||||
Temperature
|
5-40℃
|
||||||
Humidity
|
30-93% non-condensing
|
||||||
Fetal/Maternal Performance Specifications
|
|||||||
Performance Specifications
|
Display
|
12.1 inch (1024×768 pixel) color TFT –LCD
|
|||||
Indicator
|
Visual on-display and integrated, alarm light, audible alarm
|
||||||
Battery
|
Internal rechargeable Li-ion battery power
|
||||||
Alarm
|
Visual on-display and integrated, alarm light, audible alarm
|
||||||
Memory
|
48-hours memory for fetal traces
|
||||||
Printer
|
America standard/international standard Built-in thermal printer (110mm, 150mm, 210mm for option) 1/2/3cm/min real-time printing speed, fast print speed (stored traces)
|
||||||
Paper
|
Z-fold, thermosensitive
|
||||||
Record Message
|
ID, name, age, date, time, print speed etc
|
||||||
CMS
|
Support connecting to central monitoring station through LAN (TCP/IP) or wireless connection
|
||||||
Fetal/Maternal Technical Specifications
|
|||||||
Ultrasound (FHR)
|
Measurement range
|
US
|
0 to 240 bpm
|
||||
Resolution
|
Display
|
1bpm
|
|||||
Printer
|
1bpm
|
||||||
jitter@200 bpm
|
≤3bpm
|
||||||
Display update rate
|
0.25second
|
||||||
Beat to bea change(max.) for ultrasound
|
28bpm
|
||||||
US frequency
|
1MHz± 5%Hz
|
||||||
TOCO
|
Measurement method
|
Strain gauge sensor element
|
|||||
Sensitivity
|
1 unit =2.5g
|
||||||
Resolution
|
1 unit
|
||||||
Measurement range
|
500 units
|
||||||
Baseline setting
|
0, 5,10, 15, 20 can be selective
|
||||||
Update rate
|
0.25 second
|
||||||
Auto offset correction
|
3 second after connecting the transducer
|
||||||
Auto zero adjust
|
TOCO value is set to zero negative following a negative
Measure value for 5 seconds
|
||||||
Auto Fetal Movement (AFM)
|
Technique
|
Pulsed doppler ultrasound
|
|||||
Range
|
0-100%
|
||||||
Resolution
|
1%
|
||||||
Automatic fetal movement actograph
|
|||||||
Manual fetal movement marker
|
|||||||

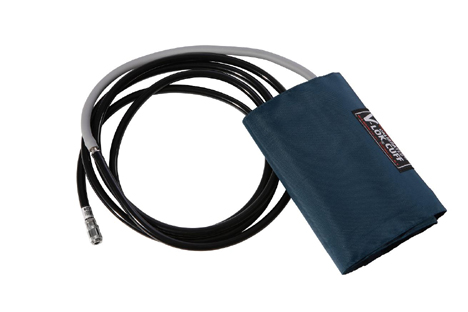

Maternal NIBP
|
Operation mode
|
Manual/automatic/ STAT
|
|||||
Measurement unit
|
mmHg / kPa selectable
|
||||||
Test interval
|
0-480 minutes
|
||||||
Accuracy
|
Max.Std.deviation:8 mmHg(1.1kPa)
|
||||||
Max. mean Error: ±5mmHg(±0.7kPa)
|
|||||||
Measurement range
|
Systolic
|
30 to 270 mmHg(4 to 36 kPa)
|
|||||
Diastolic
|
10 to 245 mmHg(1.5 to 32kPa)
|
||||||
Mean
|
20 to 255 mmHg(2.5 to 34kPa)
|
||||||
Pulse rate range
|
40~240bpm
|
||||||
Over-pressure protection
|
Yes
|
||||||

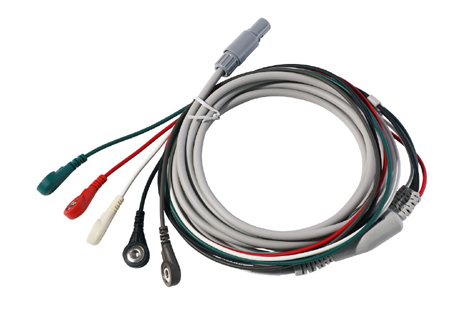

Maternal ECG (MECG)
|
Heart rate range
|
30~300bpm
|
|||||
Resolution
|
1bpm
|
||||||
Accuracy
|
±1bpm/ ±1%
|
||||||
Leads
|
I, II, III, avL, avR, avF, V
|
||||||
Sweep speed
|
12.5mm/s, 25mm/s, 50mm/s
|
||||||
Gain selection
|
x 0.25, x0.5 ,x1,1, x2
|
||||||
Operation mode
|
diagnostic, monitor, surgery
|
||||||

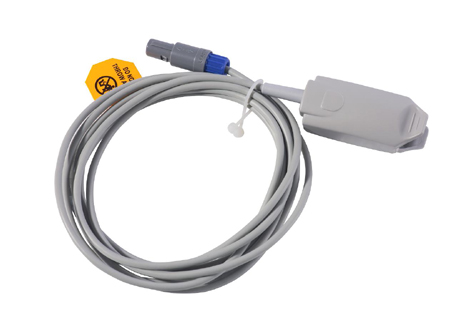

Maternal SpO2 (MSpO2)
|
Measurement range
|
0%-100%
|
|||||
Resolution
|
1%
|
||||||
Accuracy
|
±2%
|
||||||
Pulse rate range accuracy
|
±3bpm
|
||||||
Maternal Temperature (TEMP)
|
Technique
|
Thermistor probe CYSI 400 series compatible
|
|||||
Measurement range
|
0℃-50℃
|
||||||
Accuracy
|
±0.1℃
|
